Flexible video borescope, functioning as a micro digital camera.
It is an ideal tool for Non-Destructive Testing (NDT) and Remote Visual Inspection (RVI), and a must-have instrument for aero-engine inspection.

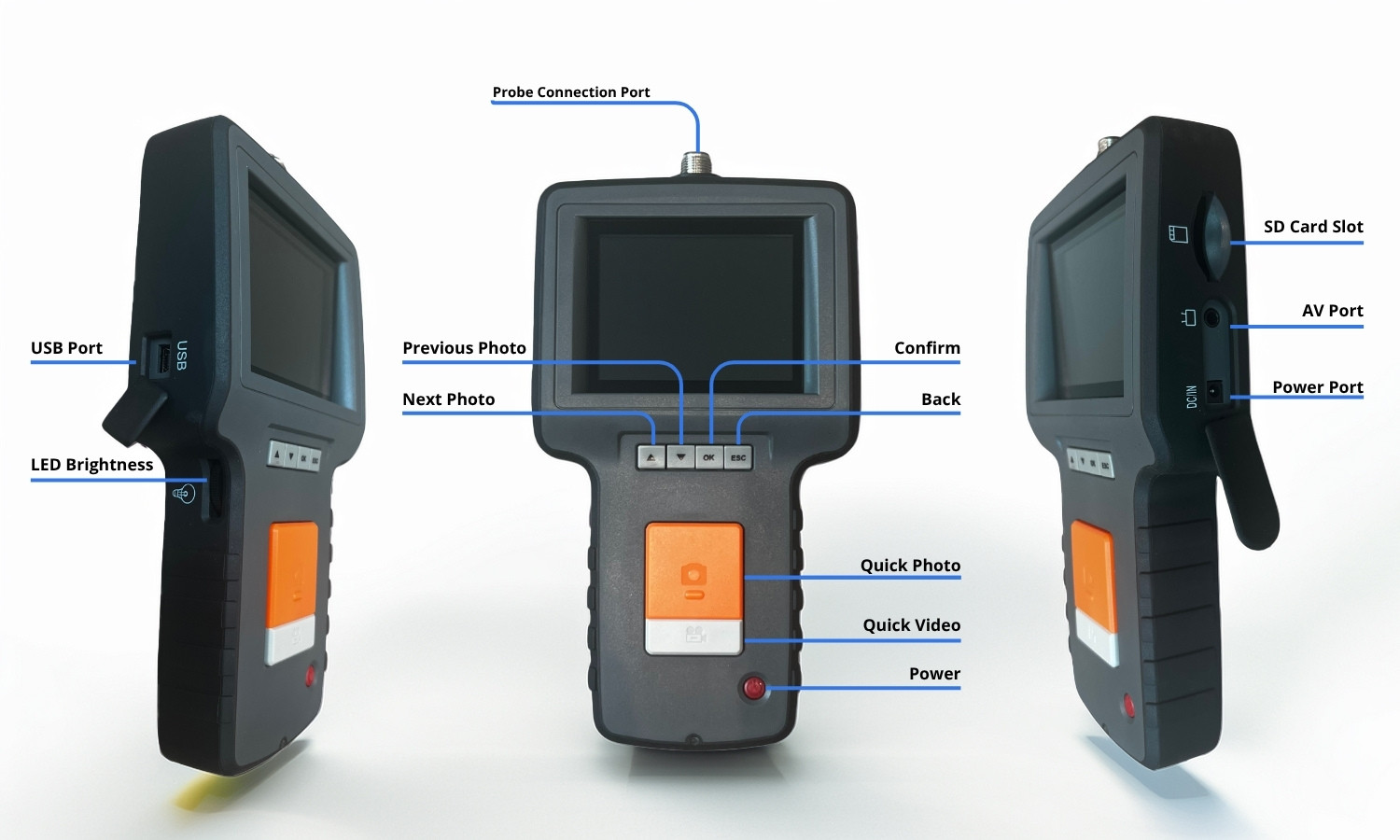

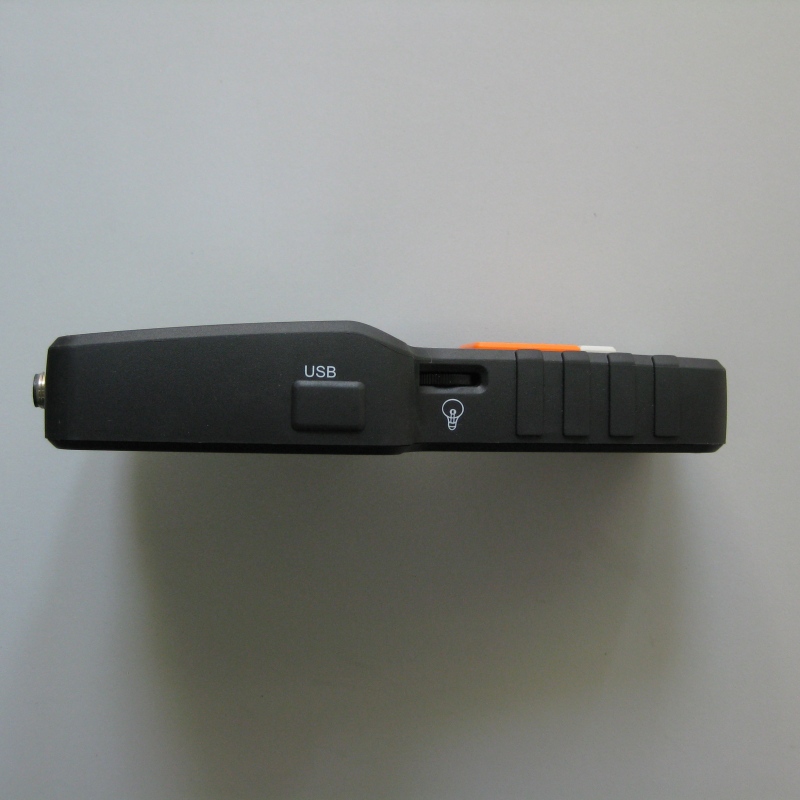

Equipped with 4 LED lights, it features a 5-pin USB port that allows users to easily transfer digital videos and photos to computers or laptops.
It has a built-in 512MB SD memory.
This is a truly universal NDT/RVI system that captures digital video and photo images, which can be easily transferred to computers.

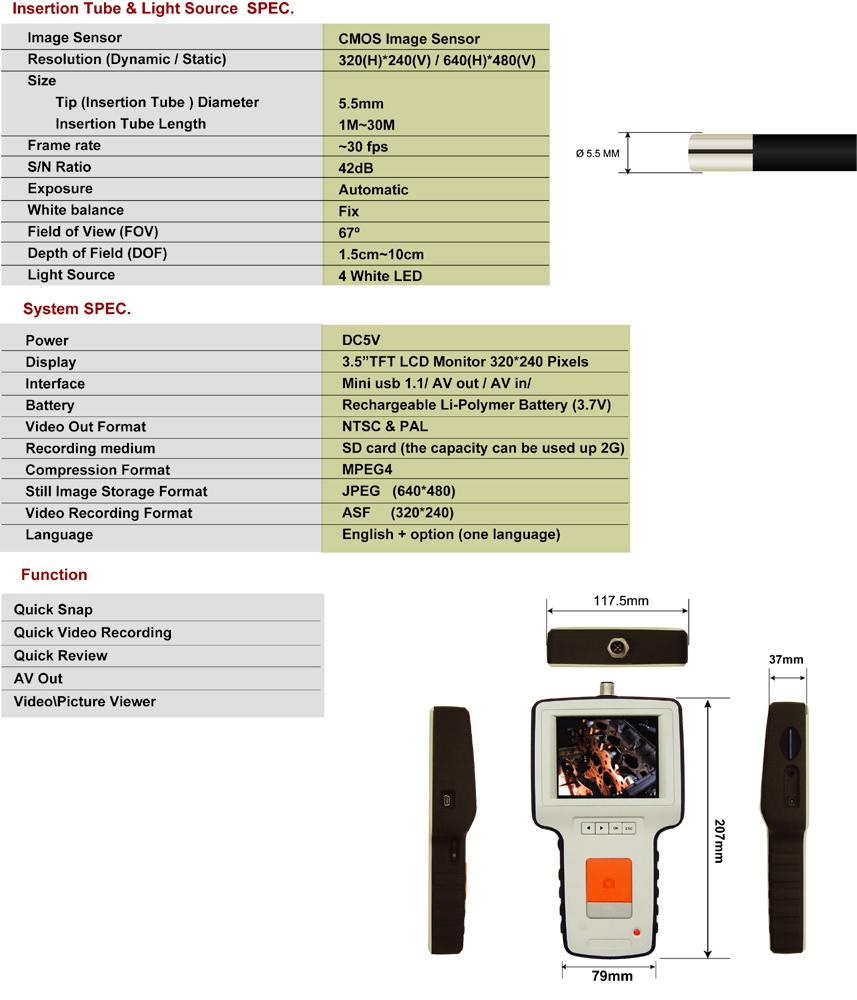

Technical data
| Display Unit | |
| Power | DC5V |
| Display | 3.5” TFT LCD Monitor 320 X 240 Pixels |
| Interface | Mini USB 1.1/AV Out |
| Battery(not user serviceable) | Rechargeable Li-Polymer Battery (3.7V) |
| Power Adapter | 100 ~ 240VAC in / 5.5V DC Out |
| Video Out Format | NTSC & PAL |
| Recording Medium | SD card (1GB supplied / up to 2GB can be used) |
| Compression Format | MPEG4 |
| Still Image Storage Format | JPEG (640 X 480) |
| Video Recording Format | ASF (320 X 240) |
| Working & Storage/Battery charging temperature range | - 20℃ to 60℃ / 0℃ to 40℃ |
| Functions |
Snapshot, Video Recording, Picture & Video review on LCD screen, TV Out, transfer of picture & video from SD care to PC. |
ME-Series is professionally designed to help Inspector working under the sun.This unique sun-shade design capable to block the sunlight by 50%, In order to provide sharp, clear image on the system. In addition, protecting monitor from bumps& scratches.
细节
Flexible video borescope, functioning as a micro digital camera. It is an ideal tool for Non-Destructive Testing (NDT) and Remote Visual Inspection (RVI), and a must-have instrument for aero-engine inspection. Equipped with 4 LED lights, it features a 5-pin USB port that allows users to easily transfer digital videos and photos to computers or laptops. It has a built-in 512MB SD memory. This is a truly universal NDT/RVI system that captures digital video and photo images, which can be easily transferred to computers.
细节
The RS Series endoscope, designed specifically for military and emergency applications, features exceptional waterproof and shockproof capabilities. Its 5-inch LCD display delivers crystal-clear images, providing an excellent user experience that enables you to perform inspections with ease in complex environments such as turbine engines and pressure vessels.
