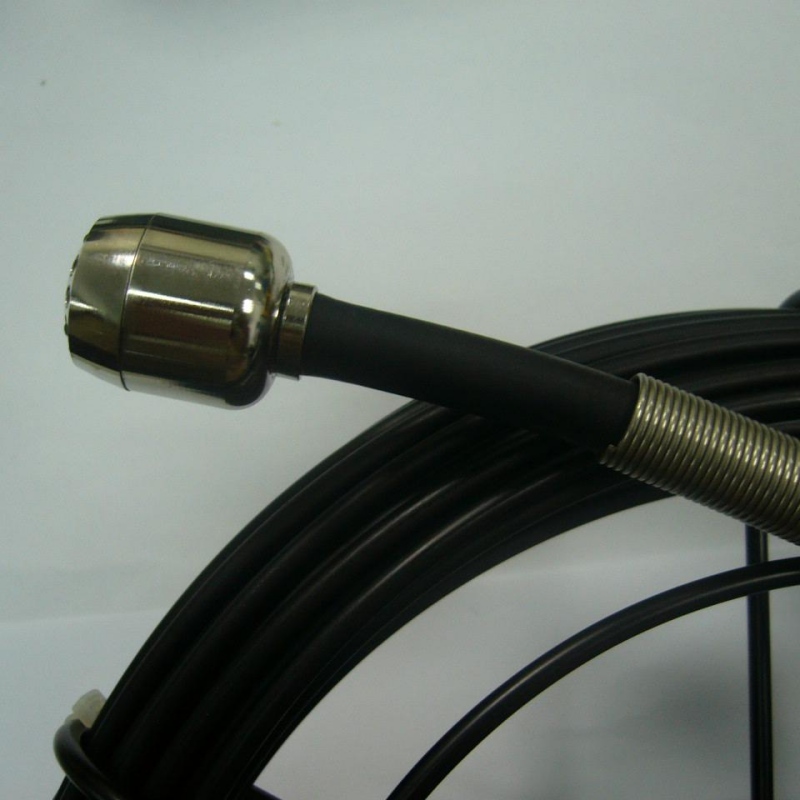

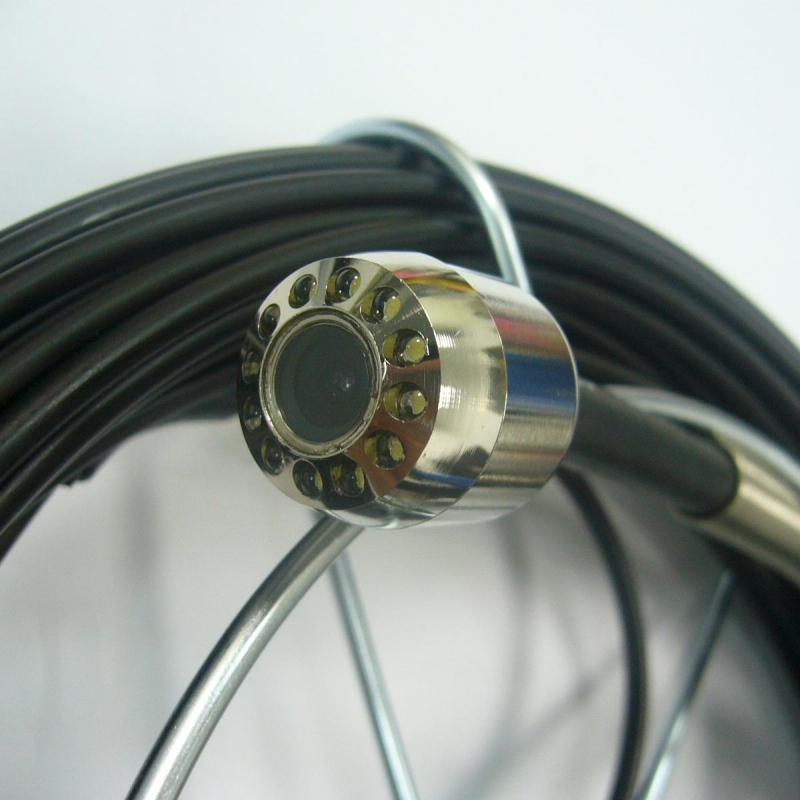

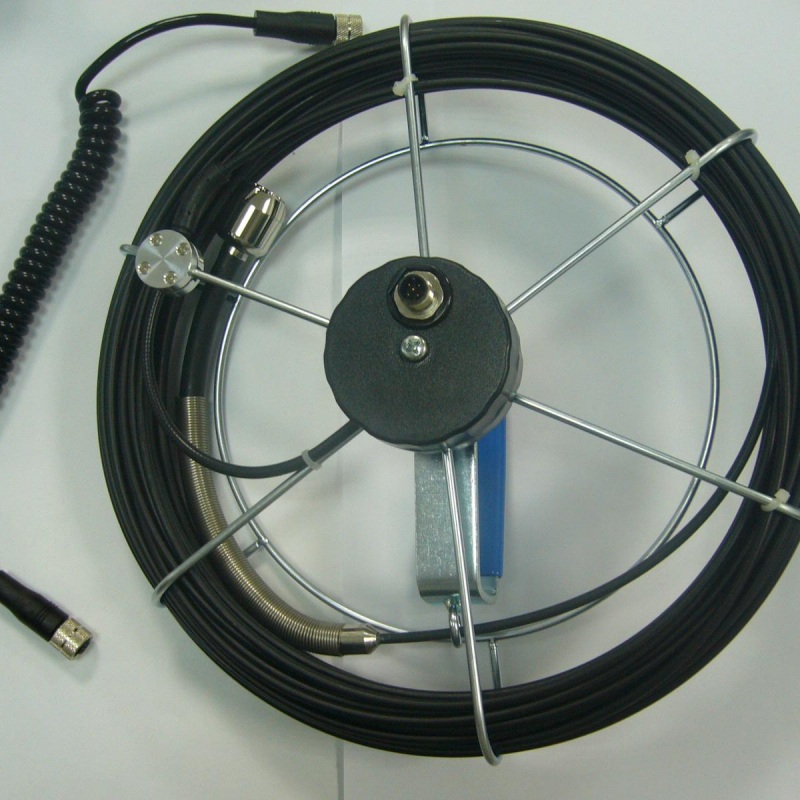

CMOS Sensor Cable
| Probe Diameter | 25mm |
| Working Length | 1000cm / 2000cm / 2500cm / 3000cm |
| Effective Pixels | 0.3MP |
| Field of View (FOV) | 107° |
| Depth of Field (DOF) | 5cm ~ 60cm |
| Viewing Direction | Forward View |
| Light Source | 8 × White LED (Φ3) + 4 × White LED (Φ5) |
| Insertion Tube Material | Fiberglass Semi-rigid Tube |
Operating Environment
| Operating Temperature | -20℃ to 70℃ (-4℉ to 158℉) |
| Storage Temperature | -20℃ to 70℃ (-4℉ to 158℉) |
| Relative Humidity | Max. 95% |
| Waterproof Rating | IP57 (Lens and cable only) |
Model & Specification
| Model | Outer Diameter | Working Length | Pixels | Material | Viewing Direction | Depth of Field |
| 281000C-B | 28mm | 1000cm | 0.3MP | Semi-rigid tube | Forward view | 5~60cm |
| 282000C-B | 28mm | 2000cm | 0.3MP | Semi-rigid tube | Forward view | 5~60cm |
| 282500C-B | 28mm | 2500cm | 0.3MP | Semi-rigid tube | Forward view | 5~60cm |
| 283000C-B | 28mm | 3000cm | 0.3MP | Semi-rigid tube | Forward view | 5~60cm |
